ICEpower DIY 4-channel box for ICEpower 1200AS2 & 2000AS2
ICEpower DIY 4-channel box for ICEpower 1200AS2 & 2000AS2
Create your own high-performance power amplifier with this DIY 4-channel case kit, perfectly suited for 2 x ICEpower 1200AS2 modules or 2 x ICEpower 2000AS2 (modules not included). This kit is a do-it-yourself project where all the necessary parts are included.
What is the ICEpower DIY Case-Kit?

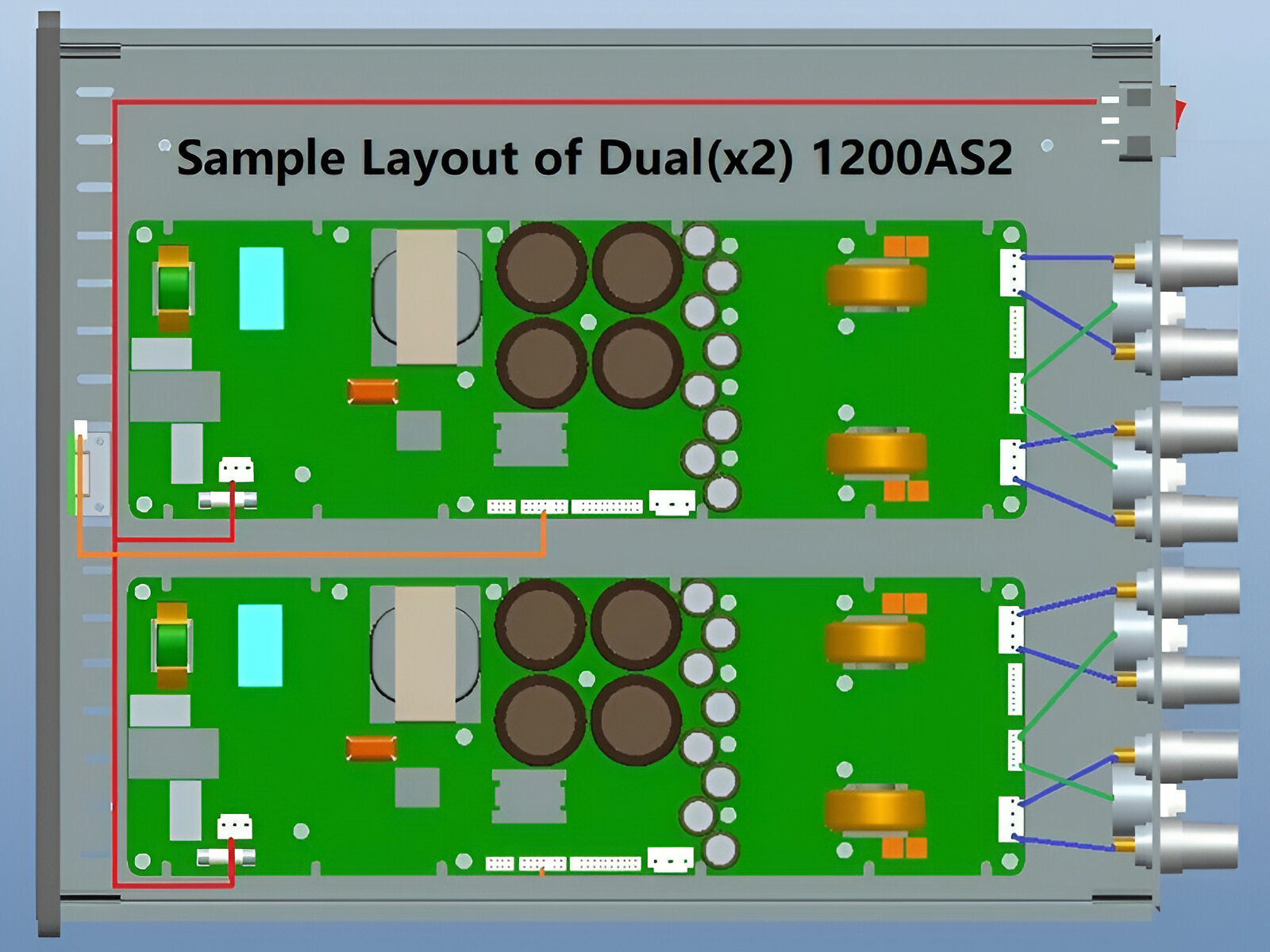

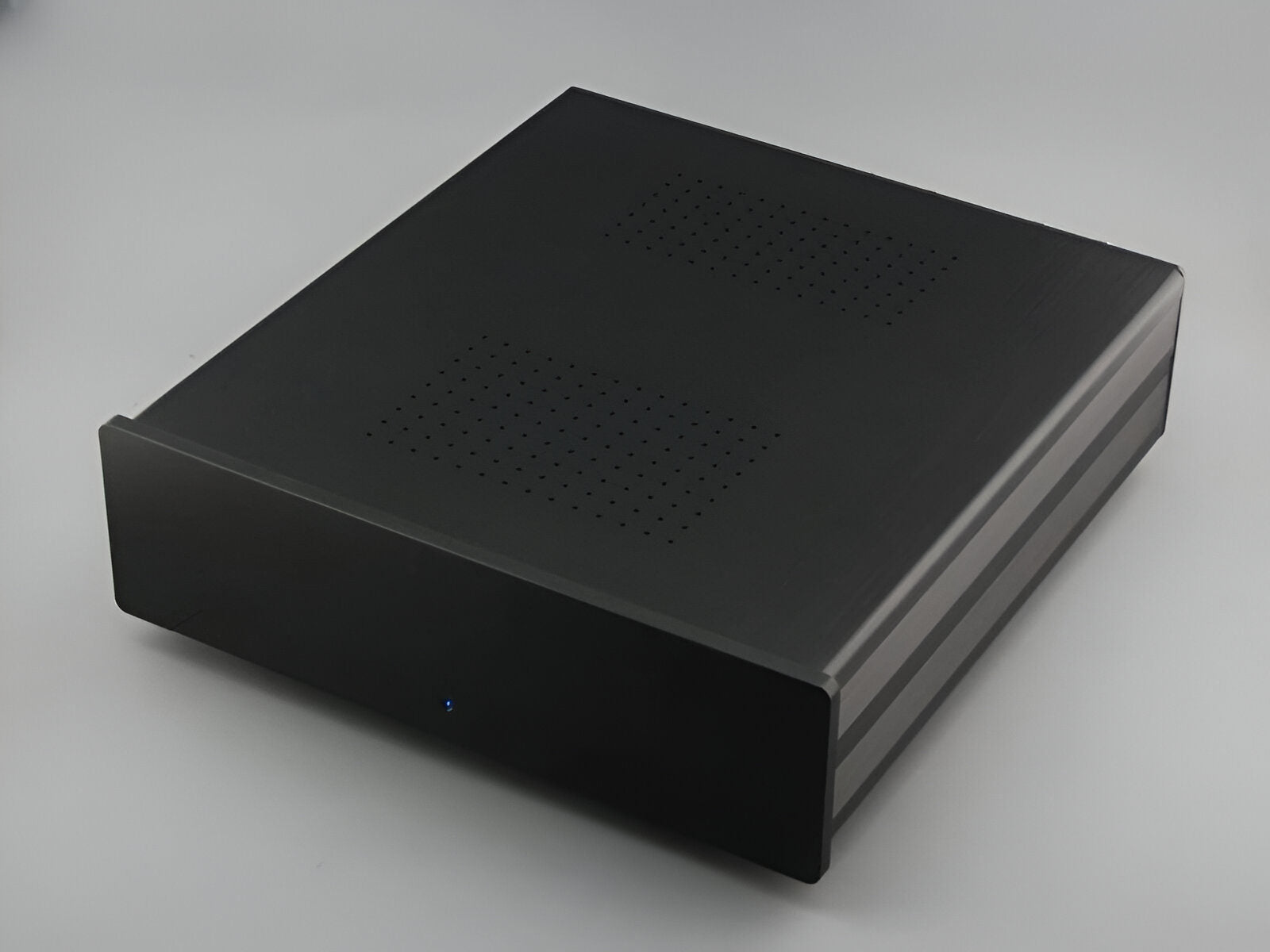

Please note that this is a case kit, not a complete amplifier kit – it does not include the amplifier module itself. Instead, you get a high-quality 100% aluminum enclosure – the best material for heat management – along with all the necessary components such as connectors, screws, feet, LED, and internal wiring. The enclosure is pre-drilled for 2 x 1200AS2 modules (or 2 x 2000AS2) and can also be customized with special drilling for other compatible modules.
Easy assembly – no soldering required
The assembly is uncomplicated and consists of only 4 parts: front panel, top, bottom, and back panel. You can easily put them together into a finished enclosure without the need for instructions or guides. This kit is also completely solder-free, making the process even smoother.
Specifications:

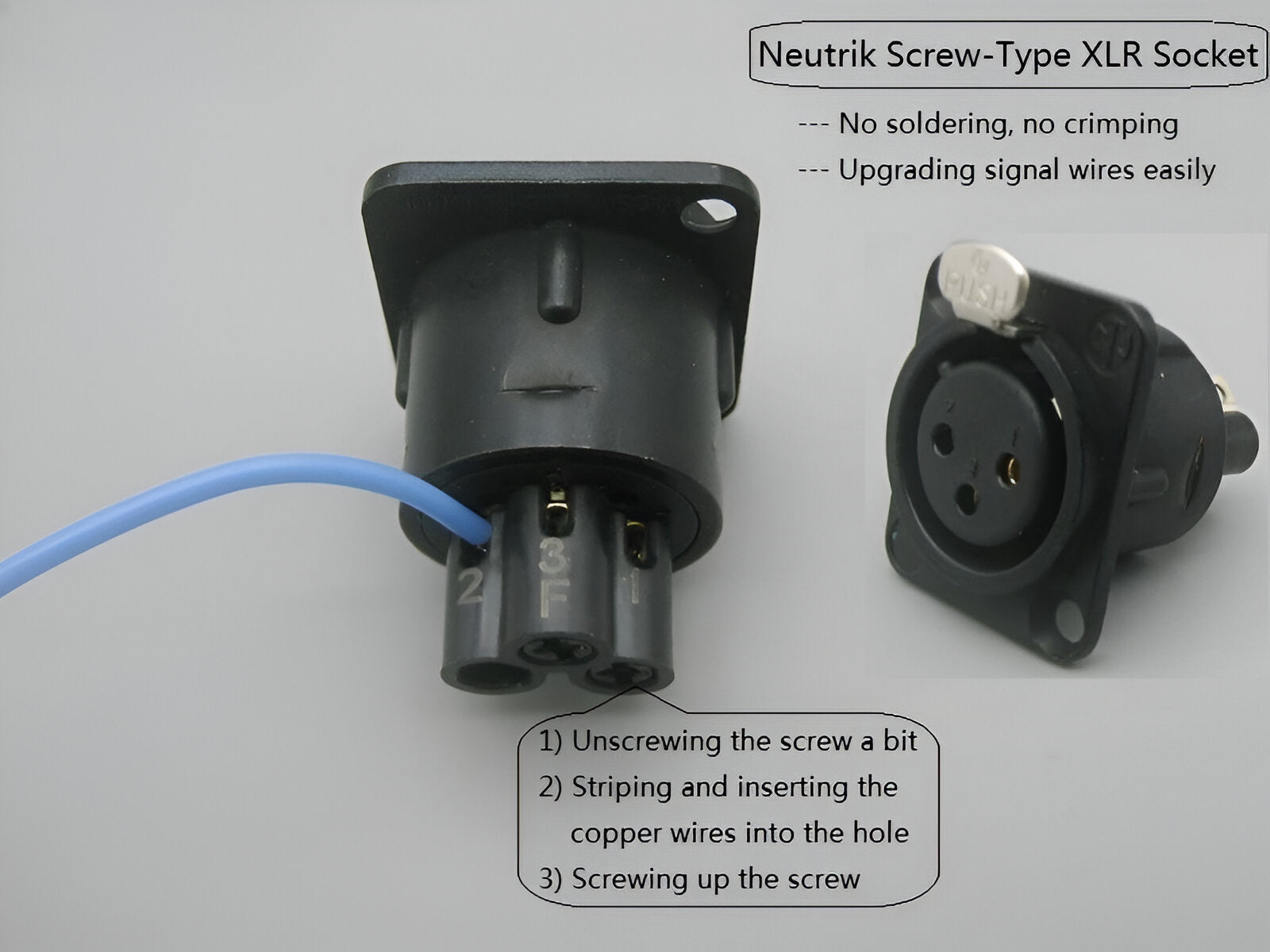

- Input: Neutrik GP119 gold-plated XLR connectors (screw type)

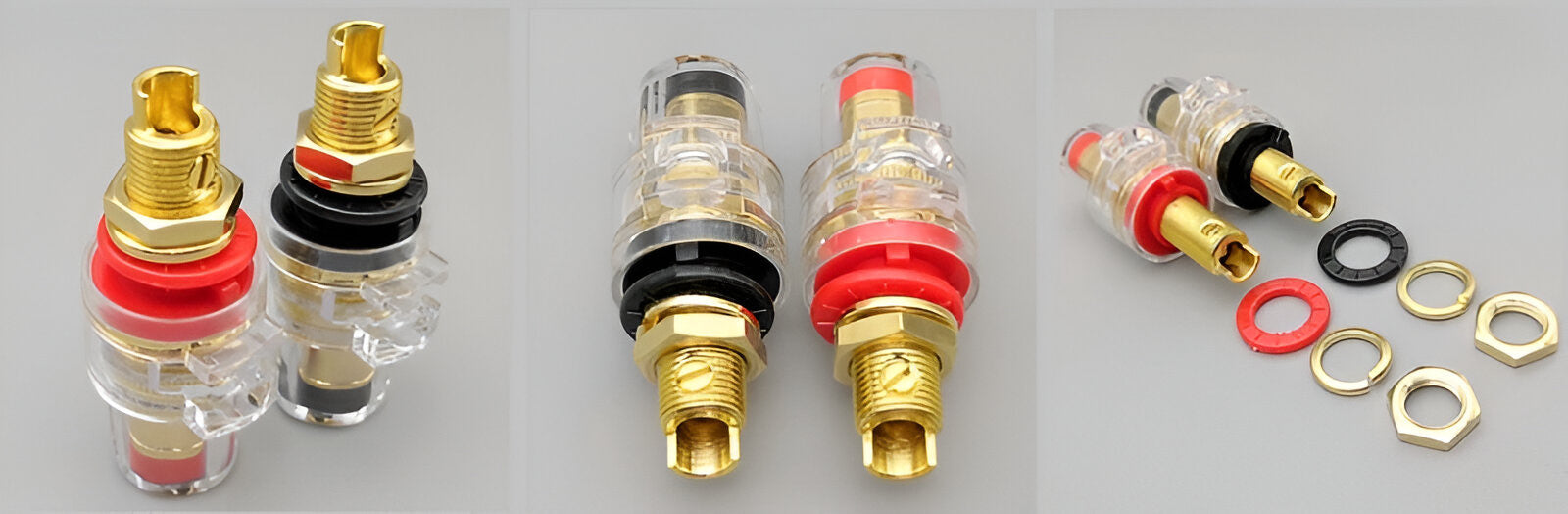

- Output: GP100 gold-plated binding posts (screw type but can be soldered if desired)
-

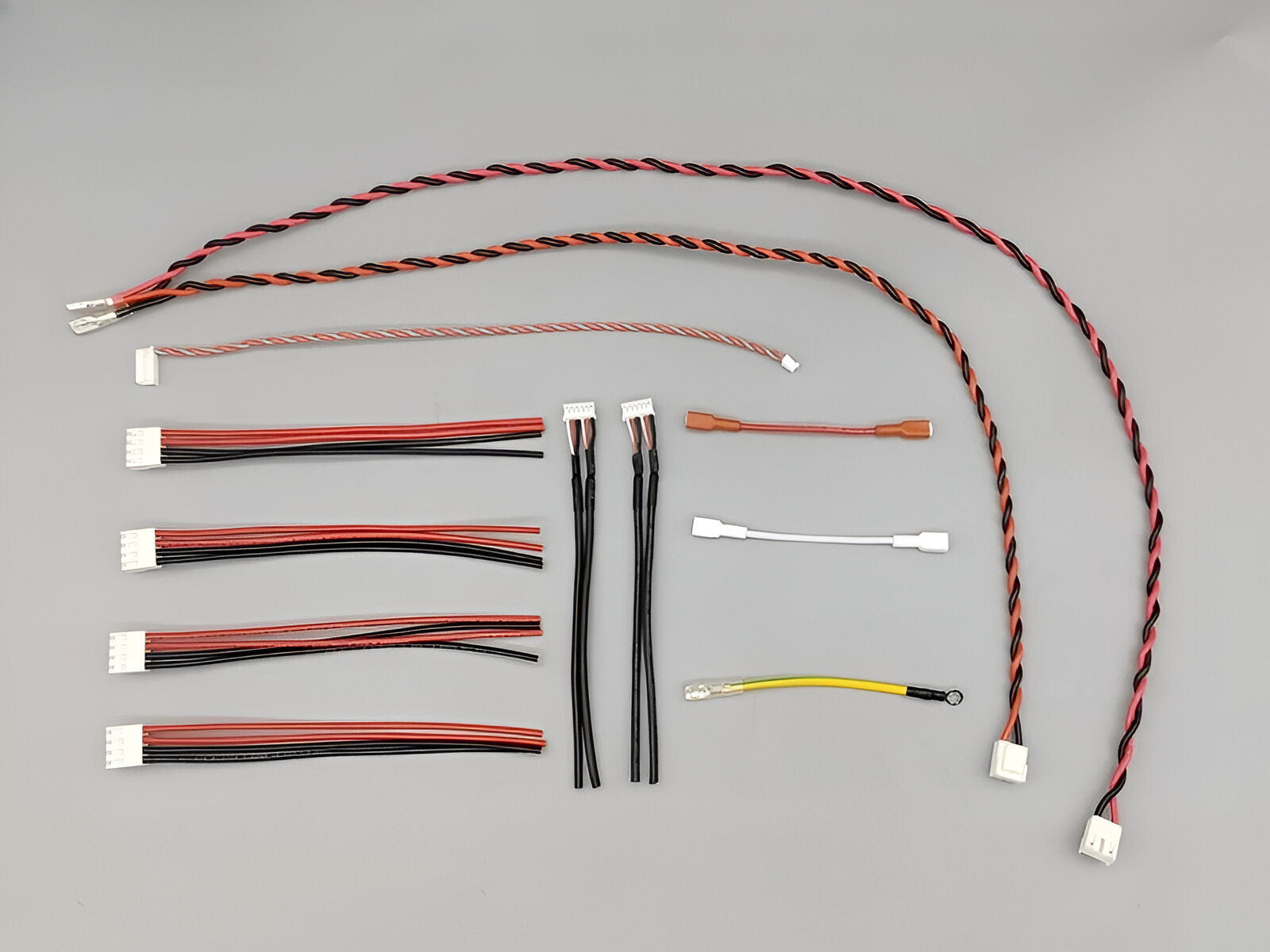

Cables:
- Power cables: Y-cable from AC inlet to 2 x 1200AS2
- Signal cables: From XLR output to amplifier module
- Speaker cables: From amplifier module to binding posts
- LED cable: From PSU to LED module
-
Measure:
- Internal: 288 mm (Width) x 75 mm (Height) x 365 mm (Depth)
- External: 300 mm (Width) x 100 mm (Height) x 376 mm (Depth) (including feet, excluding connectors)
- Finish: Black lacquered aluminum
- LED: Blue with adjustable brightness or the option to turn off.
-
Panels:

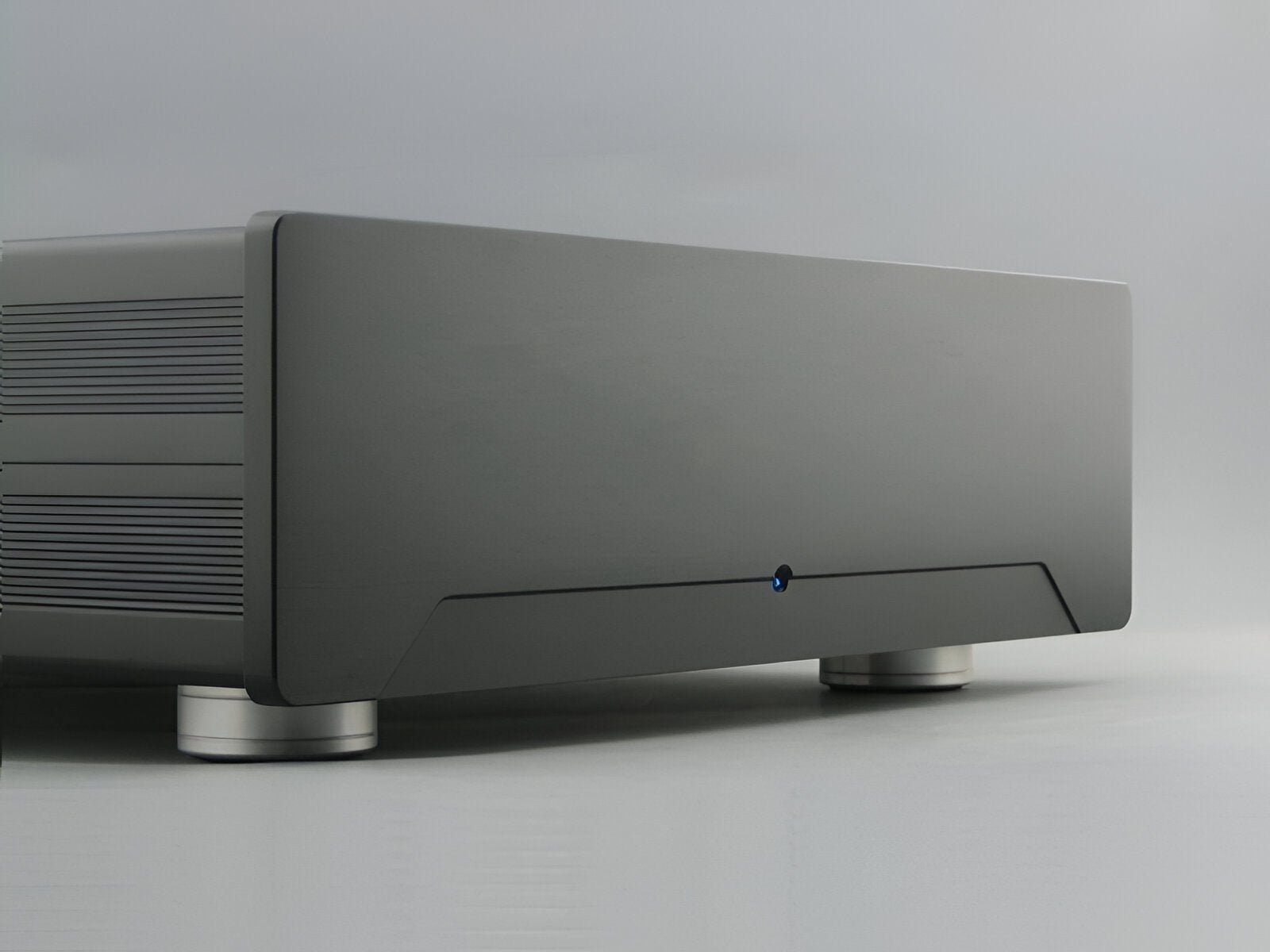

- Front panel: 8 mm thickness
- Cylinder head: 5 mm thickness with ventilation holes or slots
- Base plate: 5 mm thickness, pre-drilled for modules

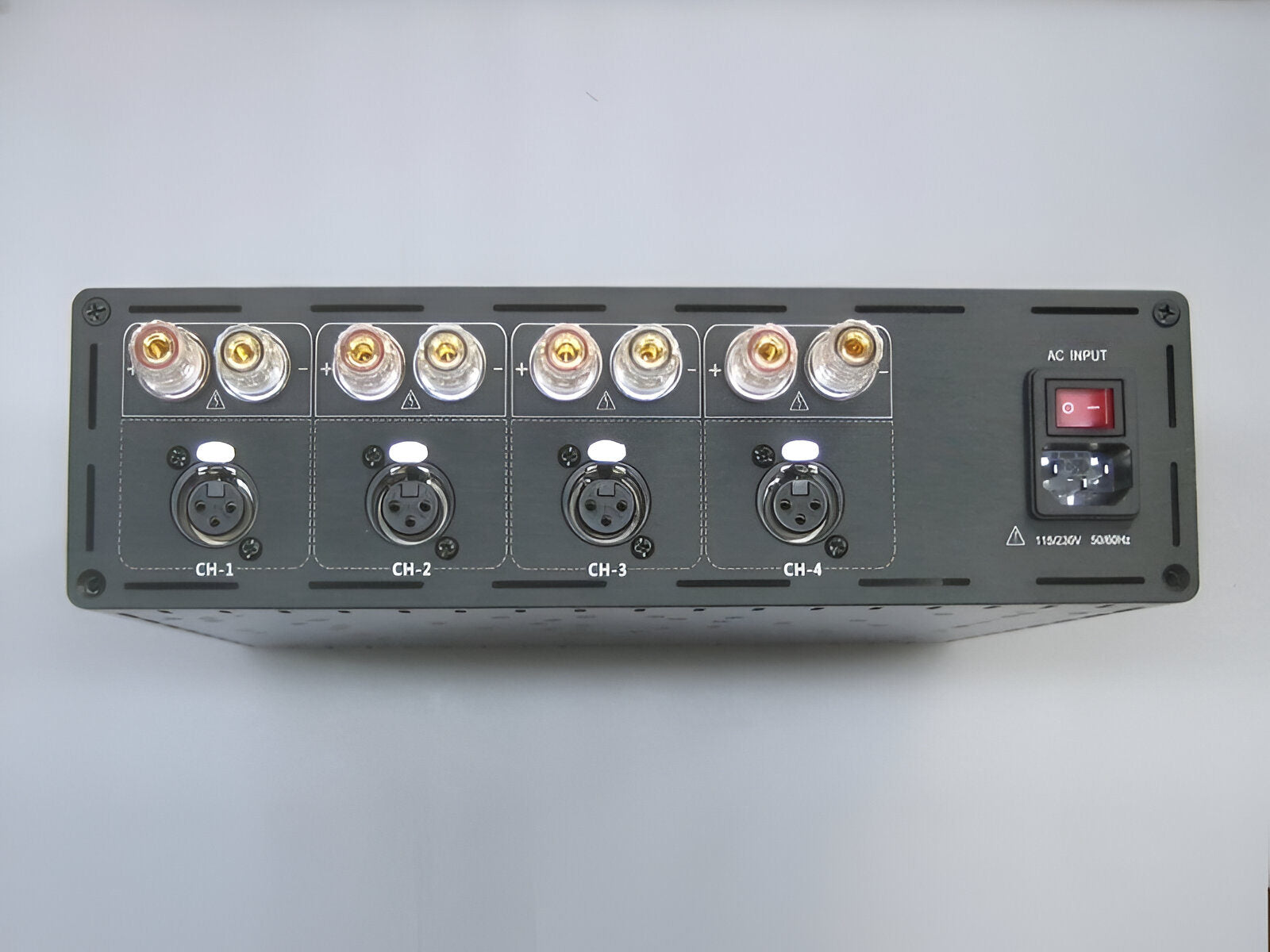

- Back panel: 3 mm thickness with laser printed text
Package contents
-
Enclosure & parts:
- Frontpanel x 1
- Cylinder head x 1
- Bottom plate x 1
- Tray panel x 1
- Aluminiumfötter x 4
- Front support x 2
- Screw set
-
Audio components:
- AC connection with switch x 1
- XLR socket x 4
- Speaker connections (pair) x 4
- Dimmable LED x 1
- Internal cabling
