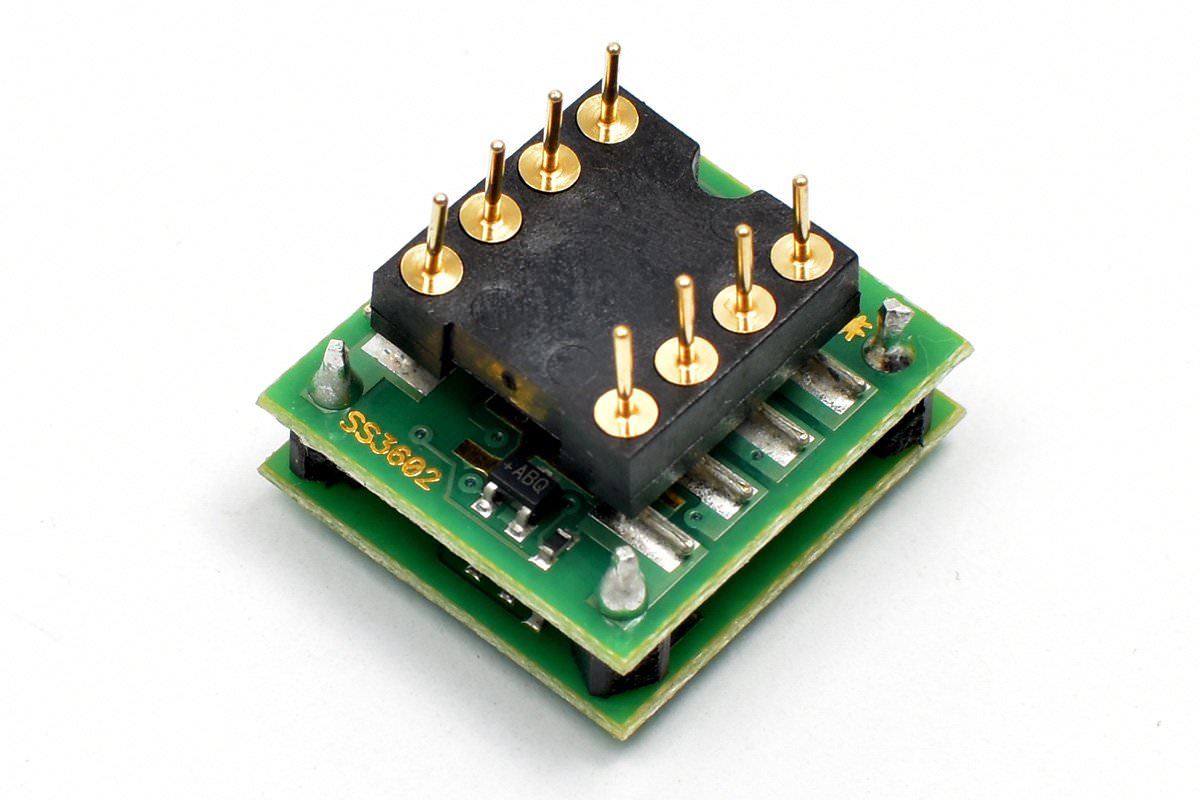

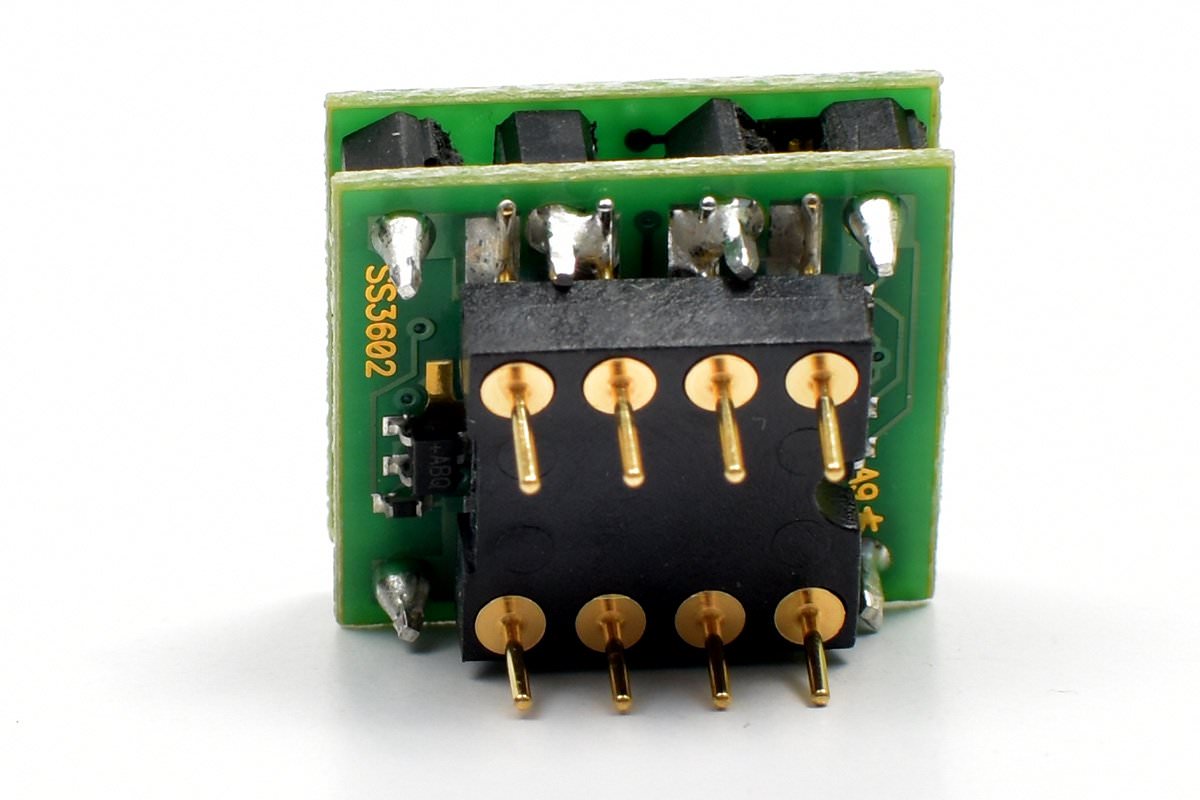

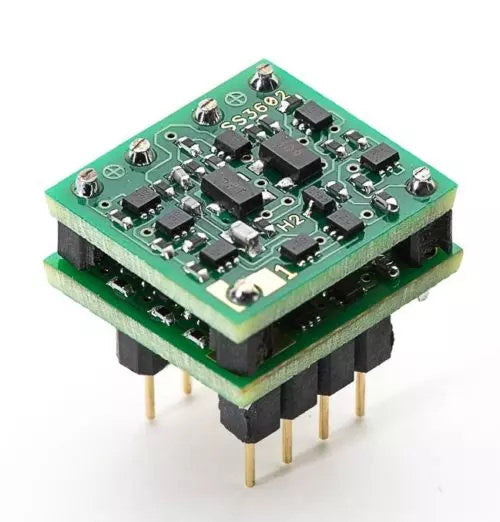

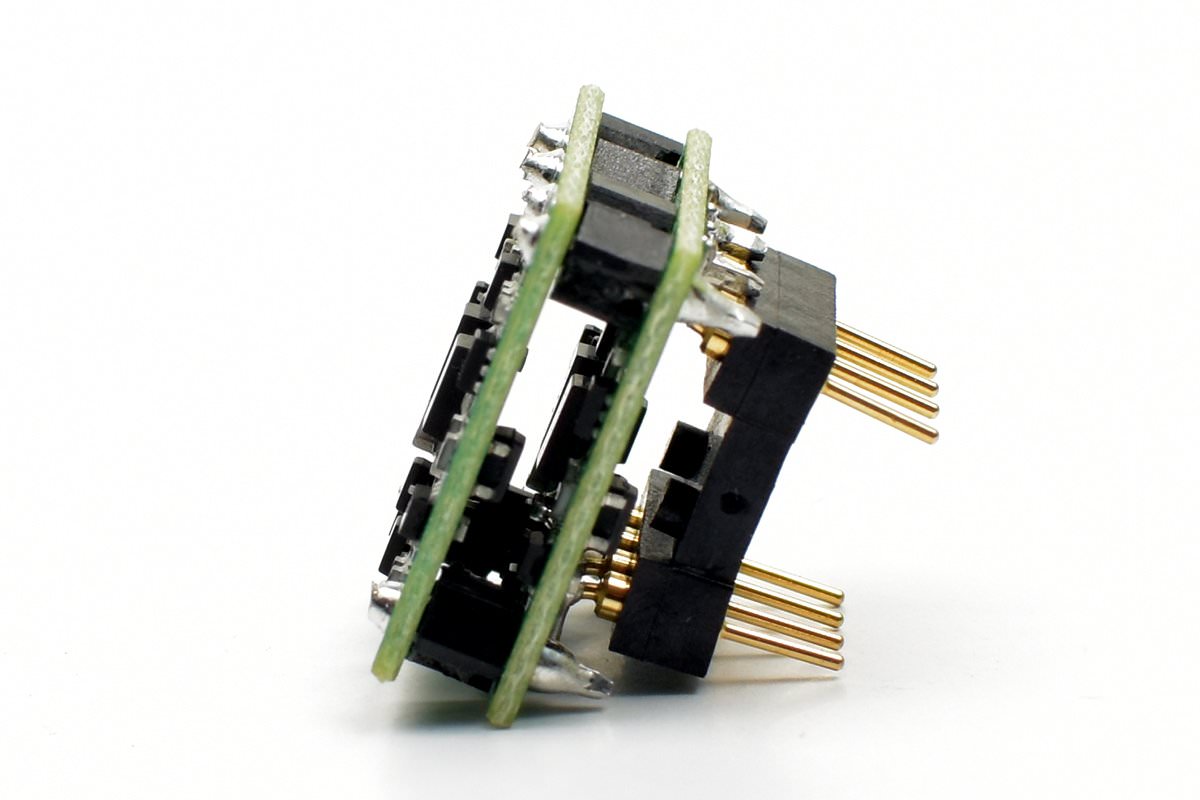

Sparkos Labs SS3602 Dual (DIP8) - discrete operational amplifier
The SS3602 are dual discrete operational amplifiers in an 8-pin DIP-compatible package optimized for high-performance audio applications. These units replace many common, but inferior, op-amps for audio and are uniquely engineered for problem-free swapping into virtually any circuit. With a footprint of only 0.33 square centimeters, these units are one-third the size of any other discrete op-amp on the market. Class A biasing and high output current combined with a proprietary two-pole compensation that requires multiple dielectric NPO capacitors make these discrete op-amps impossible to fabricate as a monolithic IC.
- Fits Aune X8
Features:
- 140 dB Open Loop Gain to 600 Hz
- Class A Output Current Of +/- 15mA
- Maximum Output Current Of +/- 50mA
- Extremely Tolerant of Capacitive Loads And High Feedback network Impedance
- Trouble Free Drop In Replacement For Audio Op amps
- Smallest Discrete Op Amp On The Market
- DIP 8 Compatible Package
- Fully Discrete Design
- True Op Amp Requiring no Ground For normal Operation Ultra Low Total Harmonic Distortion, 0.0003 THD+N @ 1kHz
