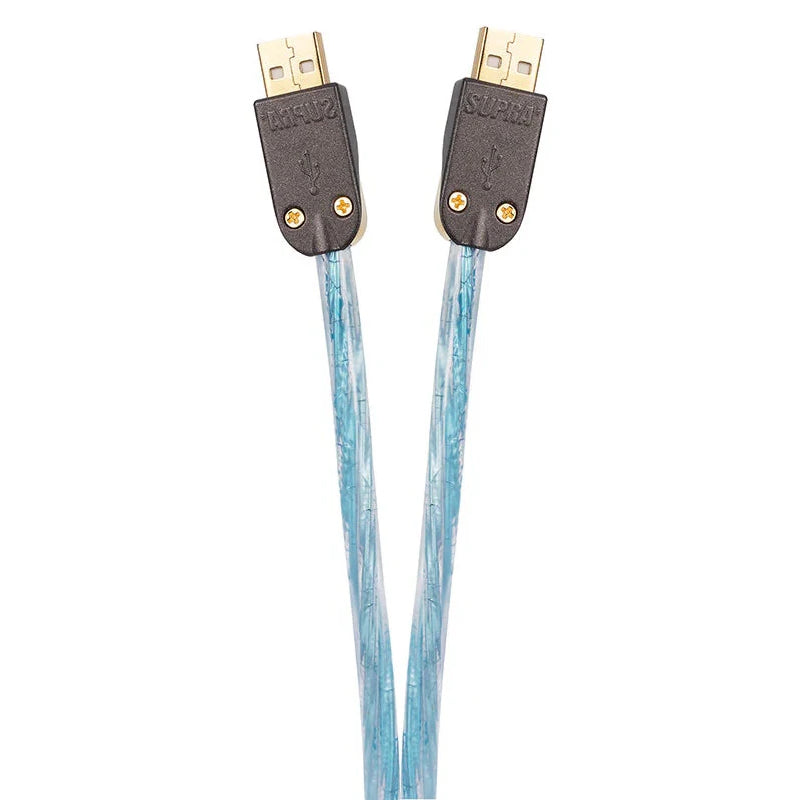

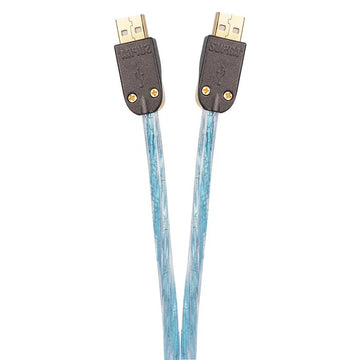

Supra USB 2.0 EXCALIBUR A-A
-
Free shipping: On all orders over 500 SEK
Supra has developed an ultimate USB cable over a couple of years; the result was USB Excalibur. Their goal was simple: to manufacture the world's best USB cable without compromises or shortcuts.
Excalibur is a premium high-speed cable with enhanced data and power transmission, a complement to the existing USB series. Both the data pair and the power pair are optimized for their purpose, transmitting data and power respectively. The twisted data pair is made of PE-insulated silver-plated oxygen-free copper. The silver layer is very thick, 3.8% of the total area, for the best conductivity and high speed factor. Silver plating makes the conductor good for high frequencies and high-speed data transmission. The construction of the power conductors is completely different compared to the data pair.
To minimize power loss and maximize conductor area, four tin-plated conductors are used in a star quad configuration. Star quad twisting together with the separate shields effectively reduces all RFI.

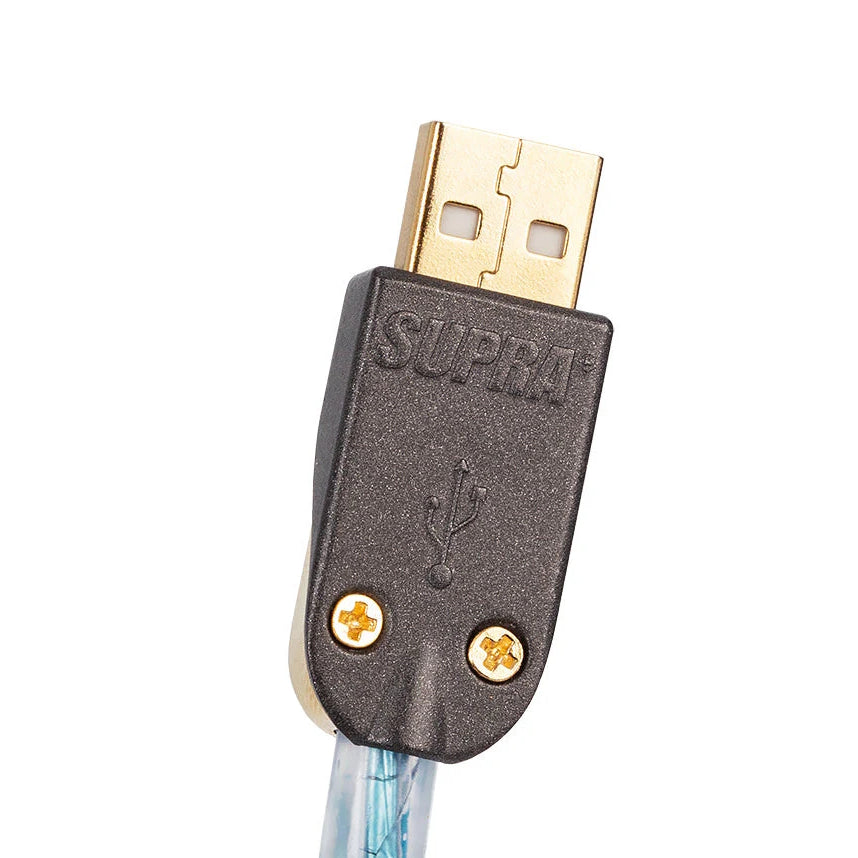

You may recognize the design of the connectors; they follow the same design concept as Supra's popular detachable HDMI connectors. The connectors are fully shielded in aluminum. The connectors are detachable to allow the cable to be pulled through 16 millimeter VP conduit, only a small Phillips screwdriver is needed. No advanced assembly/soldering is required when installing in pipes, which could compromise Supra performance.
Specifications:
| Standard | USB 2.0 Hi-Speed | |
| Connectors | USB A male ► USB A male | |
| Signal Direction | Bi-directional | |
| Application Examples | Computer peripherals, DAC's | |
| Data transfer rate | 480 | Mbit/s |
| Solder Tin | Almit SR-34 Super | |
| Cable strain relief | Cable Clamp |
Electrical properties
| Number of pairs | 2 | pieces |
| Lead area Power | 4 x 0.24 / 23 Star Quad | mm2 / AWG |
| Lead area Data | 2 x 0.24 / 23 Twisted | mm2 / AWG |
| Number of strands | 19 | pieces |
| Strand dimension | Ø 0.127 | mm |
| Lead material power | Tin plated oxygen-free 5N copper | |
| Lead material data | Silver plated oxygen-free 5N copper | |
| Insulation | Low capacitance PE | |
| Shielding | Aluminized PET foil | |
| Jacket | Heat and age resistant PVC | |
| Flame retardant | No | |
| External dimension | Ø 7.3 | mm |
Electrical performance
| Data transfer rate | 480 | Mbit / s |
| Impedance | 90 | Ohm |
| Velocity factor | 0.66x | C (speed of light) |
