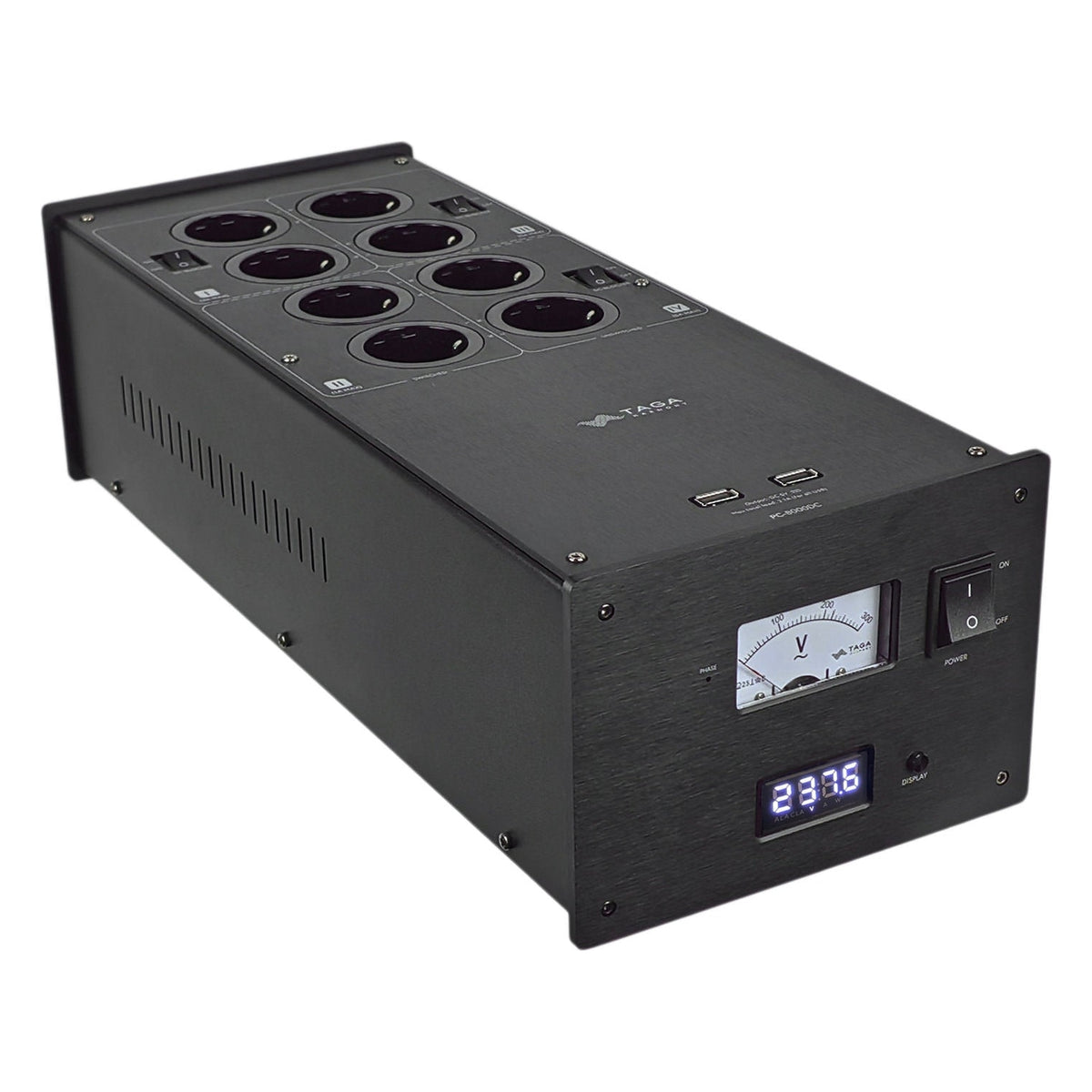

Taga PC-8000DC - Power Supply

9 490 kr
9 490 kr
Save 0 kr
Tax included.
Ask a question Share
Product description
TAGA PC-8000DC is a high-end power cleaner for high-quality sound reproduction and combines four central functions in one unit: noise filtering, DC blocking, linear USB power supply, and surge protection. The device is designed to effectively purify your voltage and enhance the performance of your audio and video equipment.

With TAGA PC-8000DC you get:
  • Improved sound quality
  • Reduced system noise
  • Protection for connected equipment
  • Effective management of electrical disturbances
Effective Power Purification

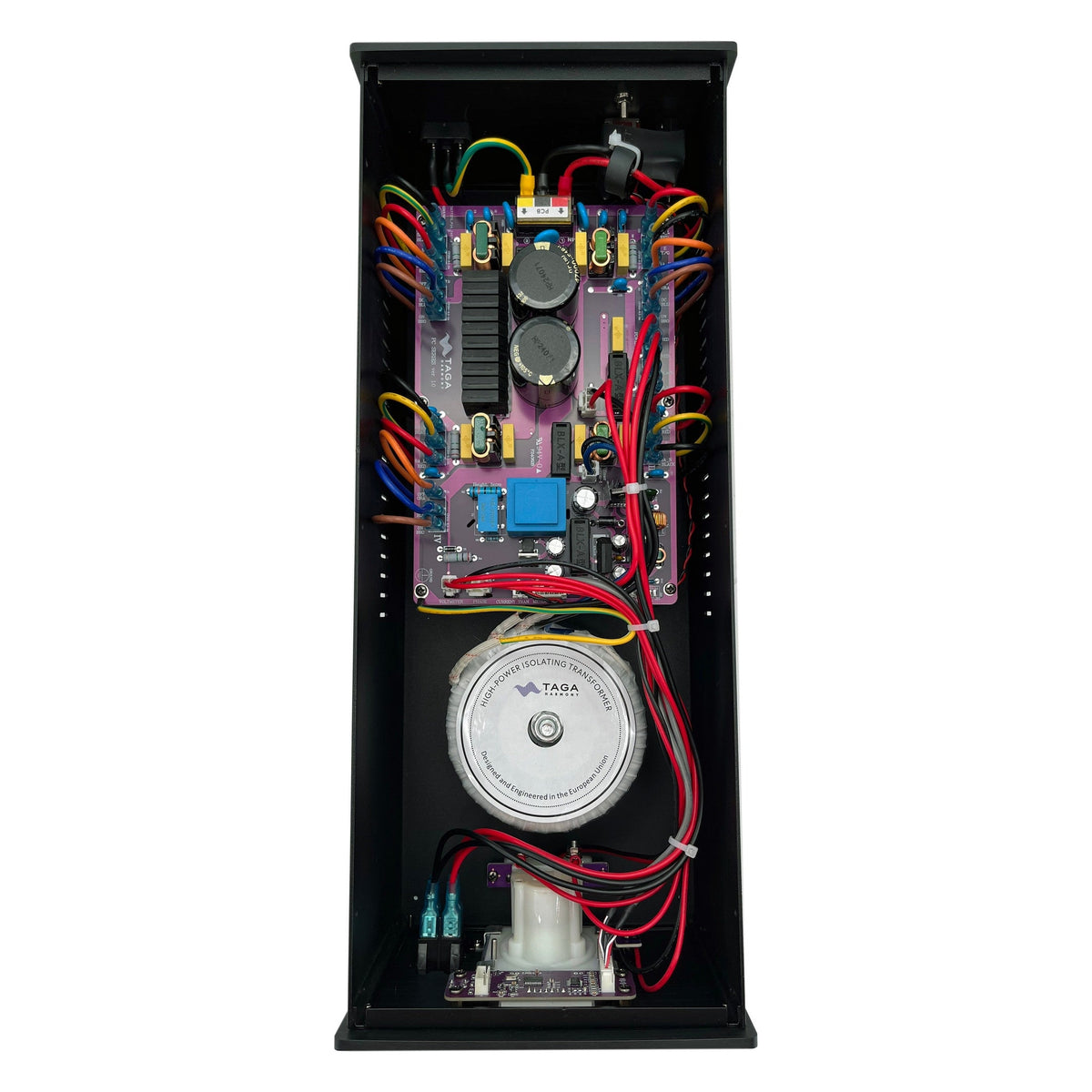

The PC-8000DC uses a 200W toroidal transformer along with high quality components to deliver clean power to your equipment. The filtering technology reduces electromagnetic interference from household appliances and external sources. The system is divided into separate filter groups to handle different types of equipment optimally.

DC blocking technology
The device contains an efficient DC blocking technology that handles voltages up to 12V (12000mV). The system uses 10 high-current/high-frequency bridges and dual 47000μF capacitors to handle direct current (DC-Voltage) while maintaining sound quality. A handy switch makes it easy to activate or deactivate the DC blocking.

USB power supply
The built-in linear power supply for USB offers good performance compared to switched power supplies. The system includes a three-stage filtering network, a dedicated toroidal transformer and EMI filtering for the 5V outputs.


To protect connected equipment, the PC-8000DC offers:
  • Overvoltage and overload protection for all outputs
  • three-step protection for the USB ports
  • Built-in automatic fuse

The PC-8000DC is equipped with:
  • Analog voltage meter
  • Digital display for voltage, current and power (switchable)
  • Fault detection with polarity selector
  • IEC C14 input with the option to upgrade the power cable
  • Both permanent and switched sockets



Specifications:

Sockets: 4 switched and 4 permanently powered sockets

Switchade:

  • Group I (max 3A) digital accessories [DC-blockering]
  • Group II (max 1A) sound sources

Permanently powered:

  • Group III (max 5A) preamplifier & accessories [DC-blockering]
  • Group IV (max 5A) amplifier [DC-blockering]

USB-A port (linear power supply)

  •  2 st (5V)

Maximum current load

Total: 14A, 3450W (all power outlets and USB ports)

Per group:

  • Group I: max 3A
  • Group II: max 1A
  • Group III: max 5A
  •  Group IV: max 5A
  •  USB-port: 2.1A (total)

Filters & Protection:

  • Brusfilter: -10dB ~ 55dB (2 - 100MHz)
  • Max current spike: 4500A [8/20µs – single value]
  • Max voltage spike: 3000V [10mA]
  • Max clamp voltage: 775V [8/20µs]
  • Max energy: 140J [10/1000µs]
  • DC blocking: Up to 12000mV (12V)

Other functions and accessories

  • Phase detector with polarity selector
  • Analog voltage meter (accuracy ±5%)
  • Digital Voltage/Current/Watt Meter (Accuracy ±3%)
  • USB charging
  • Schuko-IEC C13 power cable (1.5 m)

Power Supply / Power Consumption

  • 230V 50/60Hz
  • 2.0W (off - without connected devices)
  • 3.5W (on - without connected devices)

Physical dimensions

  • Dimensions (H x W x D): 13 x 18 x 44 cm (incl. feet)
  • Weight: 7.1 kg
